Description

Overview

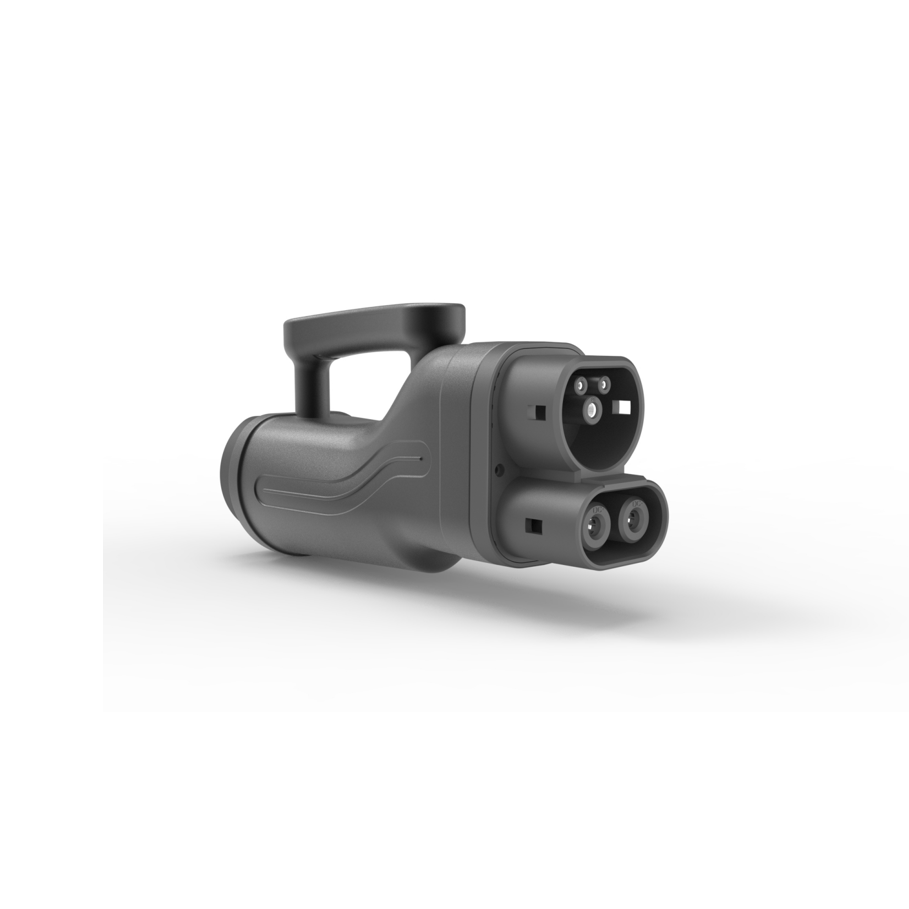

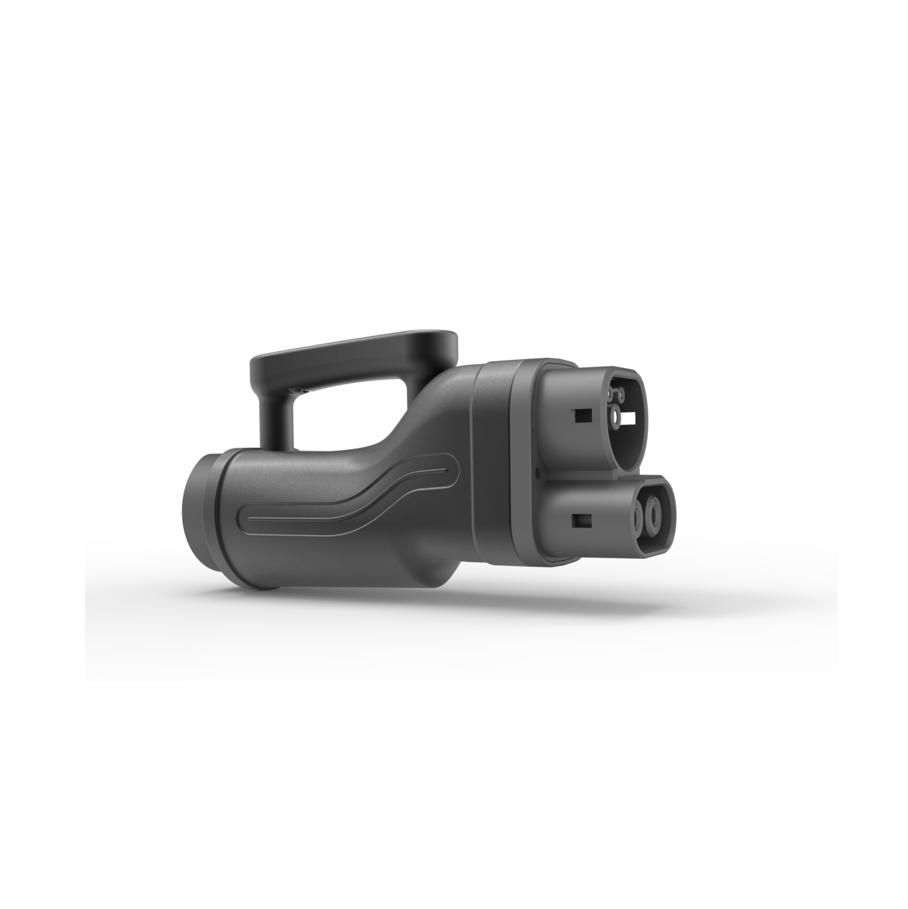

This adapter bridges GB/T DC infrastructure to CCS2 vehicle inlets, enabling fast, stable, cross-standard charging without modifying the vehicle or charger. Its compact, impact-resistant build is optimized for outdoor use and high-duty cycles.

Key Features
• Power & Current: up to 200 kW, 250 A DC
• Voltage Range: 150–1000 V DC for modern high-voltage packs
• Ruggedization: IP65 ingress protection; CE compliant
• Durability: >10,000 mating cycles; approx. 1.8 kg
• Safety: temperature-triggered cutoff around 90 °C; mechanical locking on both sides
• Materials: PA66 + 25% glass fiber housing, UL94 V-0 flame rating
• Environment: −30 °C to +50 °C operating; −30 °C to +85 °C storage

Operation Notes
• Park the vehicle, power it down, and open the CCS2 DC inlet.
• Firmly connect the adapter to the GB/T station cable until the latch clicks; then plug into the vehicle’s CCS2 inlet.
• Start/stop the session via the station HMI; ensure connectors are fully seated and locked.
• If a session fails to start, check station availability, connector seating, and the vehicle’s 12 V readiness.

Use Cases
• CCS2 EVs fast-charging on GB/T networks (cross-border or mixed-standard regions)
• Fleet depots, rental hubs, and service providers needing multi-standard compatibility
• Backup interoperability for roadside assistance and travel

Warranty & Care
Covered against manufacturing defects; misuse and modification are excluded. Keep contacts clean and dry; store the adapter in a protective case.
